Light Pipe

Light Pipe

Introducing the Light Pipe, a revolutionary structural pipe that brings a mesmerizing glow to your installations! This innovative product combines functionality with an eye-catching aesthetic, its IP-65 rating makes it perfect for both indoor and outdoor applications. With a range of sizes available (3FT, 4FT, 5FT, 8FT, and 10FT), the Light Pipe offers versatility without compromising on simplicity.
This unit is constructed using high-quality metal anodized in black, ensuring durability and longevity. This versatile product opens up a world of creative possibilities. Use it to enhance architectural features, illuminate walkways, accentuate landscape designs, or create captivating visual displays.
Upgrade your installations with the Pipe That Glows!

  • DOWNLOADS

    SPECIFICATION SHEET

    INSTALLATION INSTRUCTIONS

  • Technical Specifications

    ITEM ID: 5049
    LED TYPE: Red, Green, Blue, Warm White
    LED SPACING: .46" (11.9 mm)
    COLOR TEMP WW: 3000K
    LED WATTAGE: .19W each
    POWER INPUT: 24V
    DRIVE METHOD: Constant Voltage
    OPERATING TEMP: 125ºF
    OPERATING MODES: Channel 4 and Channel 7
    IP RATING: IP65
    INSTALLATION SYSTEM: CONICAL, PINS AND CLIPS
    HOUSING: BLACK HOUSING MATERIAL

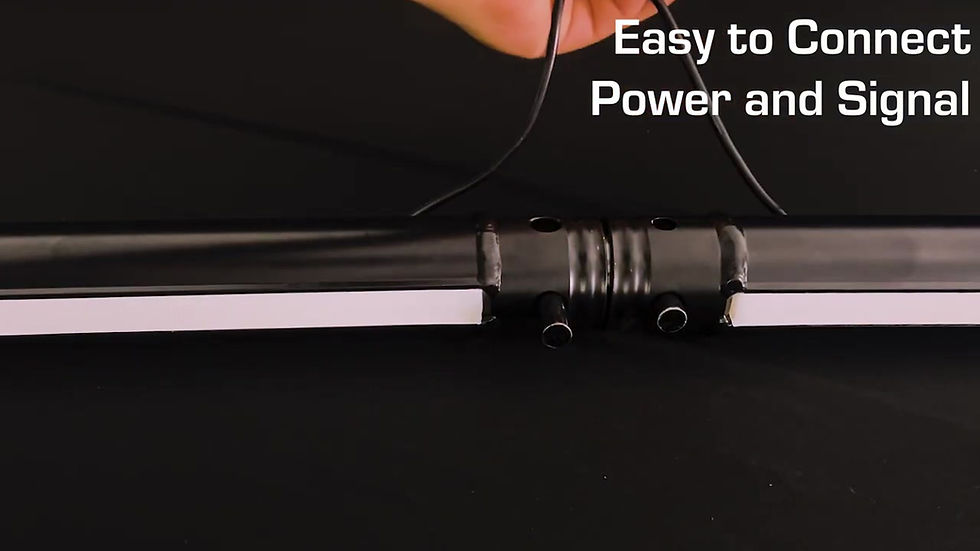

    POWER CONNECTION: 5-PIN XLR VOLTAGE INPUT AND OUTPUT
    POWER SUPPLY: 3ft: 15W 4ft: 20W 5ft: 25W 8ft: 42W 10ft: 53W
    WEIGHTS: 3ft: 3 LBS 13OZ 4ft: 4 LBS 4 OZ 5ft: 5 LBS 8ft: 7 LBS 7 OZ 10ft: 9 LBS 12 OZ
